| Place of Origin: | Dongguan China |
|---|---|
| اسم العلامة التجارية: | SANNI |
| Material: | Plastic & Metal | Dimension: | 9mm |
|---|---|---|---|
| Operating Temperature: | -25℃-85℃ | Shaft Diameter: | 6mm Or Customized |
| Shaft Length: | 6mm-20mm Normal Or Customized | Resistance Tolerance: | ±20% |
| Terminal Type: | PCB Lug | Gang: | Single |
| إبراز: | single gang rotary potentiometer 300Ω to 3MΩ,rotary potentiometer for electronic circuit tuning,single gang potentiometer with wide resistance range,rotary potentiometer for electronic circuit tuning,single gang potentiometer with wide resistance range |
||

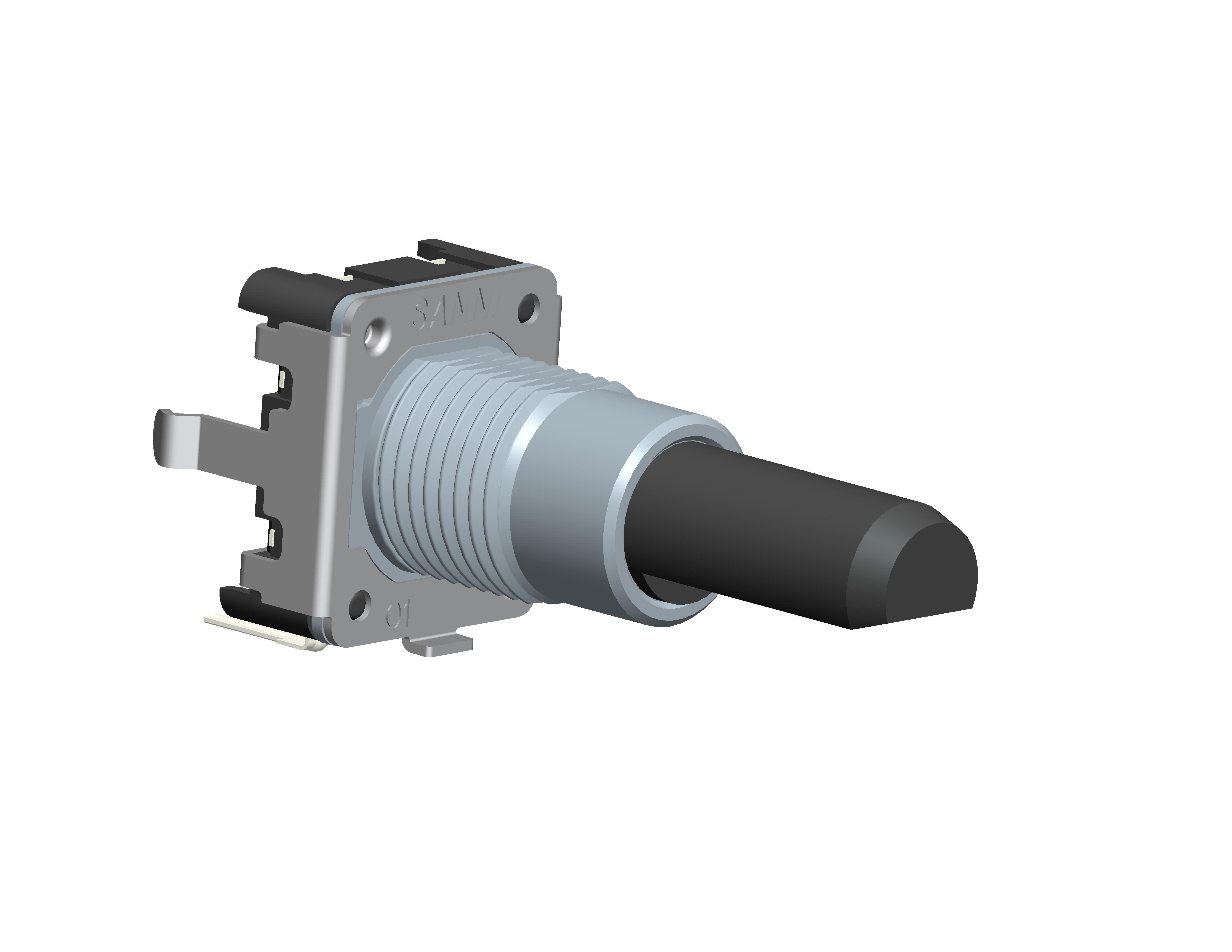

The Rotary Potentiometer is a highly reliable and versatile component widely used in various electronic circuits and devices. As a Rotary Electrical Potentiometer, it offers precise control over voltage and current, making it an essential element for adjusting signal levels, tuning circuits, and calibrating equipment. This product is designed with a focus on durability, accuracy, and ease of integration into printed circuit boards, ensuring optimal performance in both commercial and industrial applications.
One of the standout features of this Rotary Potentiometer is its PCB Lug terminal type, which facilitates straightforward and secure mounting onto printed circuit boards. The PCB Lug terminals provide excellent electrical connectivity and mechanical stability, reducing the risk of loose connections and enhancing the overall reliability of the device. This feature simplifies the assembly process and ensures that the potentiometer remains firmly in place even under conditions of vibration or mechanical stress.
Dimensionally, this Rotary Potentiometer measures 9mm, making it compact and suitable for applications where space is limited. Its small size does not compromise its functionality; rather, it allows designers and engineers to incorporate it into intricate circuit layouts without sacrificing performance. The 9mm dimension strikes a perfect balance between compactness and ease of handling, making it an ideal choice for a wide range of electronic projects and products.
The shaft diameter of the Rotary Adjustable Resistor can be either 6mm or customized according to specific requirements. This flexibility in shaft size enables users to select the most appropriate configuration for their application, whether it involves manual adjustments or integration with automated control systems. The customizable shaft diameter enhances the adaptability of the potentiometer, allowing it to fit various knobs, dials, or actuators, thus broadening its usability across different industries and applications.
In terms of electrical performance, this Rotary Analog Adjustment Device boasts an insulation resistance of at least 100MΩ. High insulation resistance is critical in preventing leakage currents and ensuring that the potentiometer maintains accurate resistance values throughout its lifespan. This characteristic is particularly important in sensitive electronic circuits where even minor deviations can affect overall system performance. The robust insulation resistance also contributes to the longevity and stability of the potentiometer under various environmental conditions.
The Rotary Potentiometer excels in providing smooth and reliable analog adjustment, making it indispensable in applications ranging from audio equipment and instrumentation to industrial controls and consumer electronics. Its ability to function as a Rotary Adjustable Resistor allows users to fine-tune resistance values with precision, which is vital for calibrating sensors, controlling voltage dividers, and adjusting signal gains. The tactile feedback and consistent performance of this potentiometer enhance user experience and operational accuracy.
Furthermore, the construction quality of this Rotary Electrical Potentiometer ensures it can withstand repeated adjustments without degradation in performance. The materials used in its manufacture are selected for their durability and resistance to wear, which means the potentiometer maintains its reliability over extended use. This durability makes it suitable for applications that require frequent tuning or calibration, reducing maintenance costs and downtime.
In summary, the Rotary Potentiometer with PCB Lug terminals, a compact 9mm dimension, and a customizable 6mm shaft diameter is an excellent choice for anyone seeking a dependable Rotary Electrical Potentiometer. Its high insulation resistance of 100MΩ minimum guarantees stable and accurate operation, making it a superior Rotary Analog Adjustment Device and Rotary Adjustable Resistor. Whether used in professional electronic devices, DIY projects, or industrial machinery, this potentiometer delivers exceptional performance, adaptability, and longevity.
| Product Name | Rotary Potentiometer |
| Resistance | 300Ω - 3MΩ |
| Resistance Tolerance | ±20% |
| Dimension | 9mm |
| Material | Plastic & Metal |
| Shaft Length | 6mm - 20mm Normal Or Customized |
| Shaft Diameter | 6mm Or Customized |
| Power Rating | 0.05W |
| Shaft Type | Round / Flat / Knurled |
| Operating Temperature | -25℃ to 85℃ |
The SANNI Rotary Potentiometer, originating from Dongguan, China, is a versatile and reliable component widely used in various electronic applications. Known for its precision and durability, this rotary voltage divider potentiometer is designed to provide smooth and accurate manual adjustments in electrical circuits. With a compact 9mm dimension and a robust dielectric strength of 500VAC, it ensures stable performance even in demanding environments.
This rotary variable resistor is perfect for scenarios where precise voltage control is essential. Its through hole/DIP mount design allows easy integration into printed circuit boards, making it suitable for both prototype development and mass production. The potentiometer's shaft type options—round, flat, and knurled—offer flexibility to fit different mechanical designs and user preferences. The single gang configuration simplifies circuit design by providing one adjustable resistive element per unit.
In practical applications, the SANNI rotary manual adjustment tool is commonly used in audio equipment to control volume levels, tone adjustments, and balance settings. It is also employed in instrumentation panels for adjusting signal levels, calibration of sensors, and tuning of circuits. Industrial machinery benefits from this potentiometer by using it to regulate motor speeds, control lighting intensity, and fine-tune operational parameters.
Additionally, this rotary voltage divider potentiometer plays a crucial role in consumer electronics such as radios, televisions, and other home appliances, where user-friendly manual control is required. Its durable construction and reliable performance make it ideal for automotive electronics, where it can be used for dashboard controls and other variable input needs.
Overall, the SANNI rotary variable resistor is a dependable component for engineers and designers looking for a high-quality rotary manual adjustment tool. Its combination of compact size, strong dielectric strength, multiple shaft options, and single gang design makes it an excellent choice for a wide range of applications, from simple circuits to complex industrial systems.
At SANNI, based in Dongguan China, we offer comprehensive product customization services for our Rotary Potentiometer series. Whether you need a Rotary Manual Adjustment Tool or a Rotary Variable Resistor, we provide tailored solutions to meet your specific requirements.
Our Rotary Multi-Turn Potentiometer products can be customized in various aspects including terminal type, mounting type, shaft length, shaft diameter, and gang configuration. We use PCB Lug terminals and support Through Hole/DIP Mounting methods to ensure compatibility with your design.
The shaft length of our potentiometers can be adjusted from 6mm to 20mm according to your needs, and we also offer customized shaft diameters starting from the standard 6mm. All products are available in a single gang configuration for precise control and performance.
Trust SANNI for high-quality, customizable rotary potentiometers that fit perfectly into your application, combining reliability with flexibility for optimal user experience.
For technical support and services related to our Rotary Potentiometer products, please refer to the product datasheets and user manuals available on our website. Our technical support team is ready to assist you with installation guidance, troubleshooting, and performance optimization to ensure your rotary potentiometer operates effectively in your application.
We provide comprehensive warranty services and repair options for defective units within the warranty period. Please ensure that you have the product model number and purchase details handy when seeking support.
For custom requirements or bulk orders, our sales and engineering teams can provide tailored solutions and detailed technical advice to meet your specific needs.
Additional resources such as application notes, FAQs, and firmware updates can be accessed through our online support portal to help you maximize the functionality and lifespan of your rotary potentiometer.
Each Rotary Potentiometer is carefully packaged in an anti-static bag to protect against electrostatic discharge during handling and transit.
The potentiometer is then placed in a sturdy cardboard box with cushioning materials to prevent any damage from impacts or vibrations.
For bulk orders, multiple units are securely packed in larger cartons with dividers to avoid movement and ensure safe delivery.
All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth logistics.
Shipping options include standard, expedited, and freight services, depending on the order size and destination.
We ensure timely dispatch and provide tracking information so customers can monitor their shipment until delivery.
Q1: What is the brand name of this rotary potentiometer?
A1: The brand name of this rotary potentiometer is SANNI.
Q2: Where is the SANNI rotary potentiometer manufactured?
A2: The SANNI rotary potentiometer is made in Dongguan, China.
Q3: What types of applications are suitable for the SANNI rotary potentiometer?
A3: The SANNI rotary potentiometer is suitable for use in audio equipment, control panels, and various electronic circuits requiring adjustable resistance.
Q4: What is the typical resistance range available for the SANNI rotary potentiometer?
A4: The SANNI rotary potentiometer is available in multiple resistance values, commonly ranging from 1kΩ to 1MΩ, depending on the model.
Q5: How do I install the SANNI rotary potentiometer in my device?
A5: The potentiometer can be mounted through a panel hole using the threaded shaft and secured with the accompanying nut. Electrical connections are made via the three terminals: two for the resistor ends and one for the wiper.
